ATC SCM50ASL Mid-Field 3-Way Monitor Pair w/Stands - $12,000 (Fischer)

ATC SCM50ASL Mid-Field 3-Way Monitor Pair w/Stands 1 thumbnail

condition: like new

make / manufacturer: ATC

model name / number: SCM50ASL

size / dimensions: 28.2˝ x 13.8˝ x 18.8˝

QR Code Link to This Post

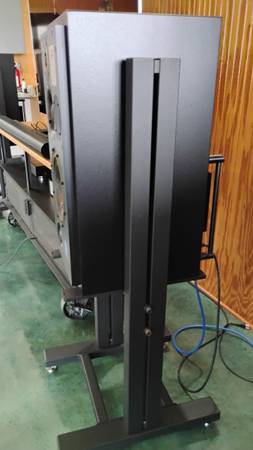

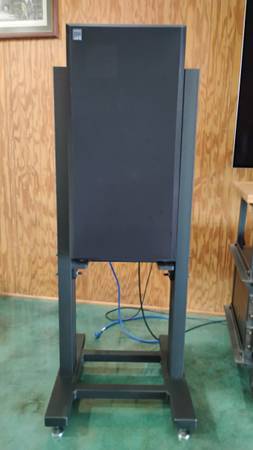

Original Owner of these Pristine Pair of Active Powered ATC SCM50ASL 3-Way Mid-Field Monitors with Sound Anchor Stands. Speakers are a 3-Way Design with 3 Separate on-board Class AB Amplifiers that Drive each Speaker. Used for personal home audio use only in non-smoking, no-pet environment, never used in a studio environment. Condition is Excellent, With ZERO DAMAGE, NO marks, scuffs, chips, etc. These still look and perform as when new.

Original shipping Cartons, Power Cords, Owners Manual are included. I can demonstrate them if interested. CASH ONLY and LOCAL PICKUP.

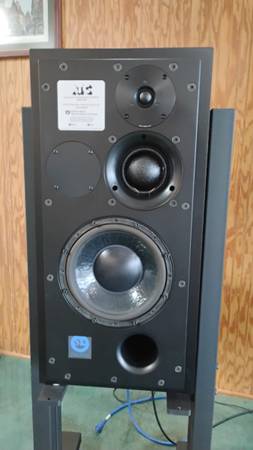

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 9″/234mm
Amplitude Linearity (±2dB): 70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 38Hz, 25kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 112dB
Crossover Frequencies: 380Hz, 3.5kHz
Audio Input: Rear panel mounted female xlr (pin 2 +)
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction (amplifiers)
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 716 x 351 x 400mm (28.2˝ x 13.8˝ x 18.8˝) Depth with amplifier at rear adds 3˝
Weight: 49kg / 107.8lbs
