Coaxial Drop Cable, 75 Ohm, Series 6, orange PE jacket, flooded for un - $50 (Lakeway)

Coaxial Drop Cable, 75 Ohm, Series 6, orange PE jacket, flooded for un 1

Coaxial Drop Cable, 75 Ohm, Series 6, orange PE jacket, flooded for un 1 thumbnail

google map

condition: new

make / manufacturer: CommScope

QR Code Link to This Post

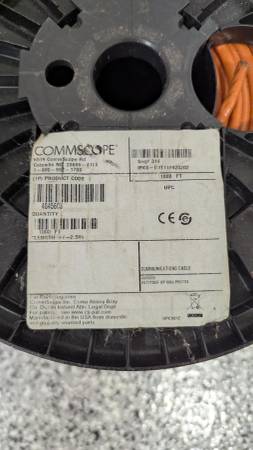

Spool of coaxial cable, maybe about 20-30ft of it used.

1000 ft CommScope XPRESSPREP® Coaxial Drop Cable, 75 Ohm, Series 6, orange PE jacket, flooded for underground

The 4845603 from CommScope is a RF Cable with Frequency Range 5.0 to 3000 MHZ, Cut off Frequency 3 GHz, Propagation Velocity 0.77, Cable Diameter 0.278 Inches, Attenuation 0.58 to 11.86 dB/100 ft.

Product Details

Part Number: 4845603
Manufacturer: CommScope
Description: F677TSEF XP ORG
General Parameters:

Application: Satellite, CATV, Cellular

Impedance: 75 Ohms
Frequency Range: 5.0 to 3000 MHZ
Cut off Frequency: 3 GHz
Propagation Velocity: 0.77
Cable Diameter: 0.278 Inches
Dielectric Diameter: 0.18 Inches
Dielectric_D: Foam PE
Inner Conductor: Copper-clad steel
Inner Conductor Diameter: 0.04 Inches
DC Resistance: 100.066 ohms/km, 30.5 ohms/kft
Jacket Material: PE
First Shield Material: 4.75 mm, 0.187 Inches.
Attenuation: 0.58 to 11.86 dB/100 ft.
Jacket Diameter: 0.278 Inches
Capacitance: 53.15 pF/m, 16.2 pF/ft
RoHS: Yes
