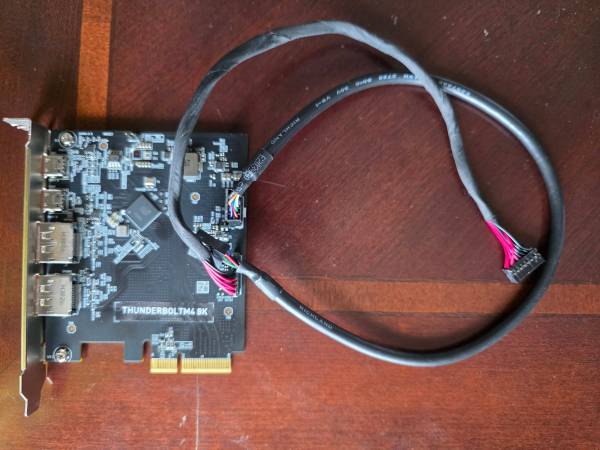

Thunderbolt 4 Card MSI - $50 (Georgetown)
condition:
good
make / manufacturer:
MSI
model name / number:
TM48K
size / dimensions:
4 3/3" x 3 38" x 3/8"
QR Code Link to This Post
Chipset: Intel® JHL8540 Thunderbolt™ 4 Controller
Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the DisplayPort Input port on the ThunderboltM4 8K card)
Model: THUNDERBOLTM4 8K
Interface: PCIe 3.0 x4 (depends on motherboard supportive slot)
External Connectors: 2 x Thunderbolt 4 (USB-C), 2 x DisplayPort input ports, 1 x 16-pin TBT header, 1 x USB 2.0 header
Form Factor: 3.35" x 4.11" inches (8.5 cm x 10.4 cm)
Accessories: 1 x ThunderboltM4 8K card, 1 x TBT header cable, 1 x USB 2.0 header cable
Only support Intel 500/600/700 series motherboard with JTBT+JUSB header
